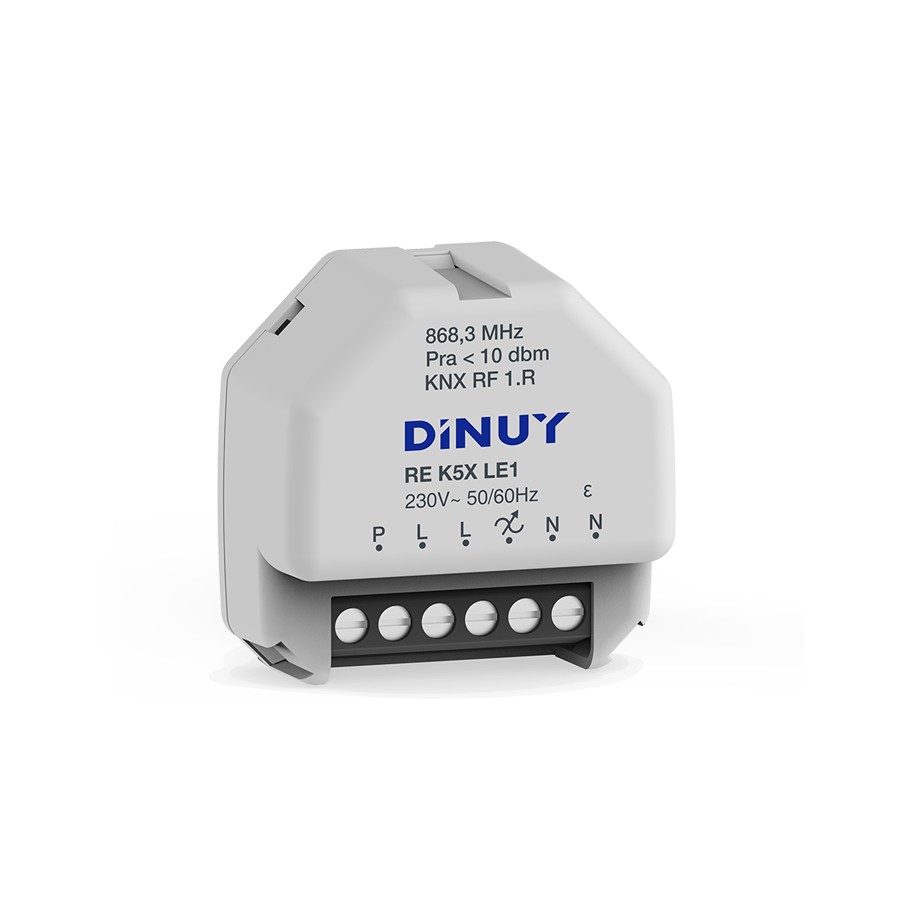

Wireless 1-channel IGBT Dimmer.1-channel KNX RF S-Mode wireless Dimming actuator for LED lamps.Allows upgrading the KNX installation without placing KNX bus wires.Operates in KNX RF+ protocol in System-Mode.Communication with the KNX Bus must be carried out using a KNX / KNX RF S-Modemedia coupler: “CO K5X 002”.Power supply: 230VAC 50/60Hz.Valid for dimmable LED lamps, Incandescent and Halogen lamps.Different functions which can be configured with ETS:· Type of dimming: leading or trailing edge.· Time of soft on and off.· Maximum and minimum dimming level.· Behavior after on telegram.Staircase time switch and Sequential operation modes.Auxiliary Pushbutton input with configurable operation.It incorporates the KNX-RF signal repeater function (optional), which allows extendingthe distance between transmitters and receivers. Adjustable behavior in case of bus voltage failure.5 pre-configured scenes.Flush mounted in junction box.Programming and commissioning by ETS5 via the KNX-RF+ USB stick “CO K5X 001”.TECHNICAL FEATURESReferenceRE K5X LE1Power supply230Vac 50/60HzOutput Dimming Rating – 230V Dimmable LED lamps by Leading-edge4W ~ 100W – 230V Dimmable LED lamps by Triling-edge4W ~ 250W – 12V Dimmable LED lamps with Electronic Transfo.250W (of transformer) – Incandescence & 230V Halogens250W – 12V Halogens lamps with Electronic Transfo.250W – 12V Halogens lamps with Inductive Transfo.Does not admitKNX MediumKNX-RF 1.RRadio-frecuency868,3MHzTransmission Power 10dBmRangeIn the Free Field: 100m // Indoors: 30mNumber of Outputs1Application SoftwareETS5Commissioning ModeSystem ModeMountingFlush-mounting within universal boxDimensions46 x 46 x 30mmProtection DegreeIP20According to the StandardsEN60669-2-1Compatible withIEC14543-3
