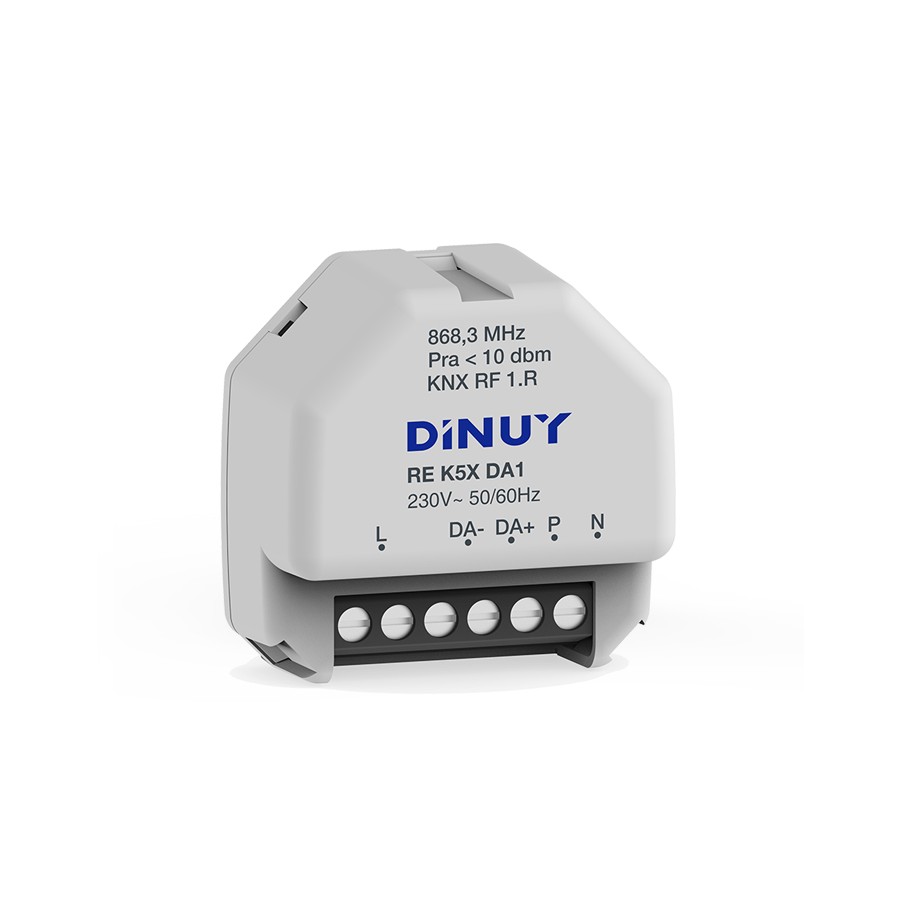

1-channel KNX RF S-Mode wireless Dimming actuator for DALI Drivers or Ballasts, with LED or Fluorescence lighting.Allows upgrading the KNX installation without placing KNX bus wires.Operates in KNX RF+ protocol in System-Mode.Communication with the KNX Bus must be carried out using a KNX / KNX RF S-Modemedia coupler: “CO K5X 002”.Power supply: 230VAC 50/60Hz.Different functions which can be configured with ETS:· Time of soft on and off.· Maximum and minimum dimming level.· Behavior after on telegram.Staircase time switch and Sequential operation modes.Auxiliary Pushbutton input with configurable operation.It incorporates the KNX-RF signal repeater function (optional), which allows extendingthe distance between transmitters and receivers.Adjustable behavior in case of bus voltage failure.5 pre-configured scenes.Flush mounted in junction box.Programming and commissioning by ETS5 via the KNX-RF+ USB stick “CO K5X 001”.TECHNICAL FEATURESReferenceRE K5X DA1Power supply230Vac 50/60HzConsumption3WType of LoadDALI Drivers or BallestsMaximum Number of ECGs64KNX MediumKNX-RF 1.RRadio-frecuency868,3MHzTransmission Power10dBmRangeIn the free field: 100m // Indoors: 30mNumber of Outputs1Application SoftwareETS5Commissioning ModeSystem ModeMountingFlush-mounting within universal boxDimensions46 x 46 x 30mmProtection DegreeIP20According to the StandardsEN60669-2-1Compatible withIEC14543-3
